Products - Labeling Machine - Automatic Top Labeling Machine

  •
  •
  •

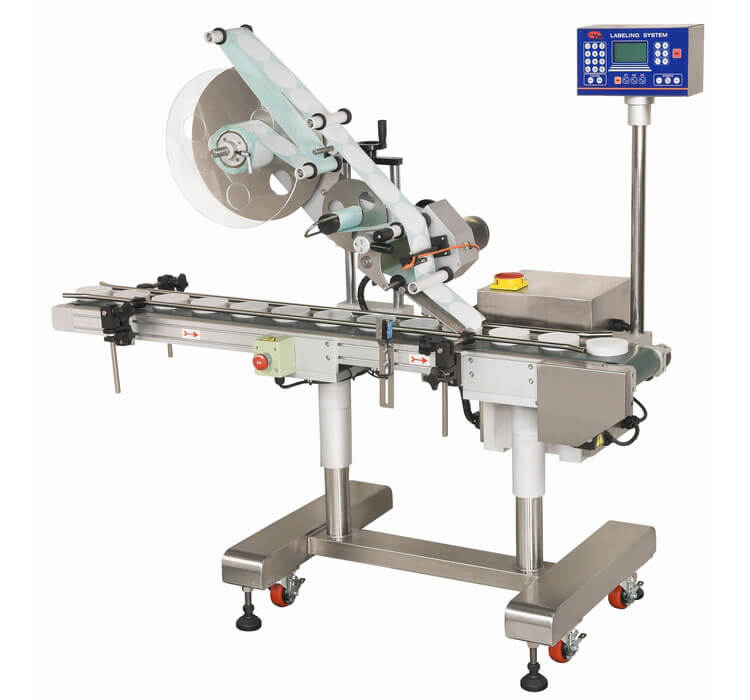

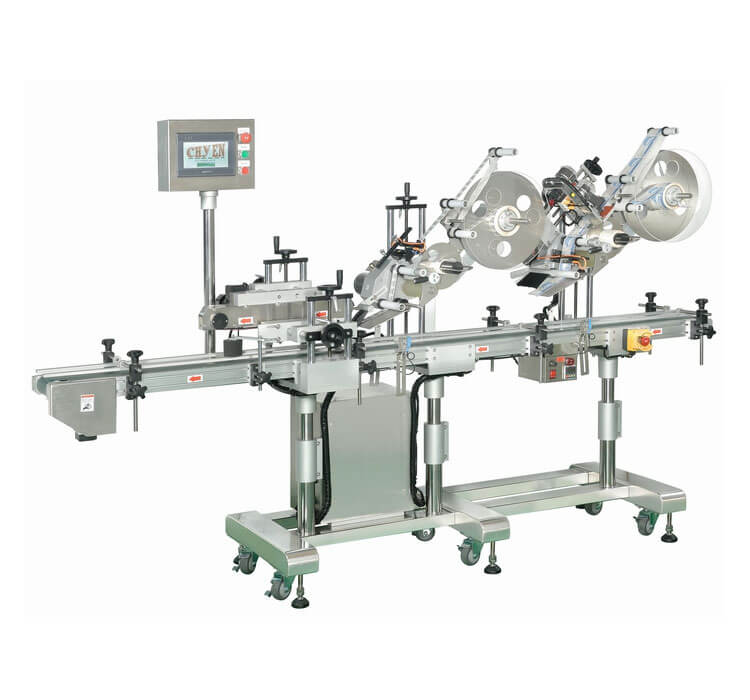

Model:CY-1000
Name:Automatic Top Labeling Machine

Features:
* The machine all made up of stainless steel and aluminum alloy from main board, main frame, conveyor belt
   table, legging, to interface. Main frame is qualified according to G.M.P standard.

* Automatically detect the length and label positioning of containers to prevent mislabeling.

* System notifies the end、shortage、broken of label and has the function of counting.

* Suitable for independent operation, also possible for connection with line operation.

* The conveying belt can be taken out if it is necessary. Horizontal or vertical labeling is applied according to
   practical needs.

Application:

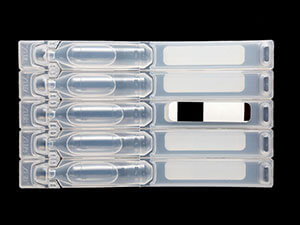

Top Labeling Machine is suitable for horizontal and irregular-surface labeling.
Specification for Product:
Model
CY- 1000A
CY-1000B
Machine Size(L*W*H)
1500x750x1500 mm
Label Length
10-300 mm
Label Height
20-135 mm
20-200 mm
Label Reel(I.D.)/(O.D.)
76 mm / 360 mm
Product Height
20-200 mm
Product Width
10-200 mm
Labeling Speed
10-350 bpm
Control System
CPU/PLC
Power Supply
110V / 220V, 50/60HZ, Single Phase
Option:

* Hot Foil Printer-Pneumatic Drive

* Transparent Sensor

* Feeding Machine

Video:
