Products - Labeling Machine - Automatic Wrap-around Labeling Machine

  •
  •
  •
  •
  •

Model:CY-2000
Name:Automatic Wrap-around Labeling Machine

Features:
* The machine all made up of stainless steel and aluminum alloy from main board, main frame, conveyor
   belt table, legging, to interface. Main frame is qualified according to G.M.P standard.

* When labeling, the bottle will automatically rotate to allow the labeling device to apply the pressure for
   labeling.

* Label position, height, and angle can be adjustable by hand wheel.

* It is optional to add auto-feeding screw mechanism, collecting turn table and positioning orientor mechanism.

* Inexperienced used only need to touch a button and follow the step on the screen, setup simply will be
   done.

Application:

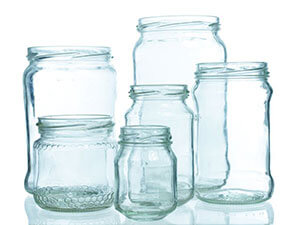

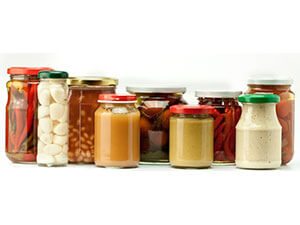

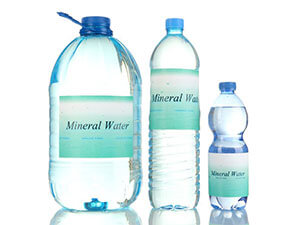

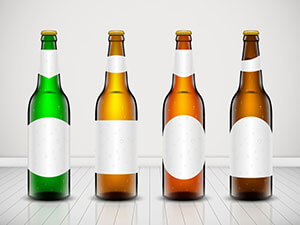

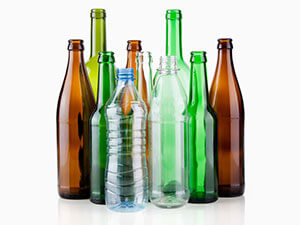

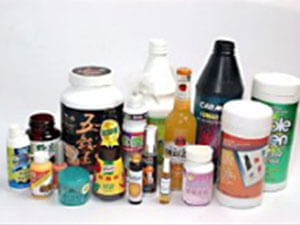

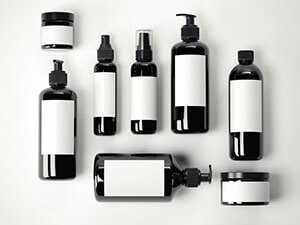

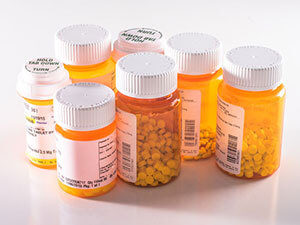

Apply the label on all kinds of cylinder in semi- or fully wrap-around. It's suitable for medicine, food, beverage, and chlinder in semi- or fully wrap-around. It does can also be connected to automatic production lines for filling, capping, ect.
Specification for Product:
Model
CY- 2000
Machine Size(L*W*H)
2000x1050x900 mm
Label Length
10-320mm
Label Height
20-135 mm
Label Reel(I.D.)/(O.D.)
76 mm / 360 mm
Product Height
20-250 mm
Product Width
20-250 mm
Labeling Speed
10-200bpm
Control System
CPU/PLC
Power Supply
110V / 220V, 50/60HZ, Single Phase
Option:

* Hot Foil Printer-Pneumatic Drive

* Transparent Sensor

* Feeding Turntable

* Collecting Turntable

* Positioning Mechanism

* Positioning Oriented Mechanism

* Labeling Angle Adjusting Mechanism

* Missing Label Detection

* Missing Print Detection

* Rejection Mechanism
