Products - Labeling Machine - Automatic Panel Labeling Machine

Model:CY-3100
Name:Automatic Panel Labeling Machine

Features:
* The machine all made up of stainless steel and aluminum alloy from main board, main frame, conveyor
   belt table, legging, to interface. Main frame is qualified according to G.M.P standard.

* Automatically detect the length and label positioning of containers to prevent mislabeling.

* System notifies the end、shortage、broken of label and has the function of counting.

* Workable independently or be installed on any production line.

* Suitable for independent operation, also possible for connection with line operation.

* The Auto Labeling has been designed for labor saving, and cost resigned for labor saving, and cost
   reduction in bottle labeling operations.

* Inexperienced users only need to touch a button and follow the step on the screen, setup simply will be
   done.

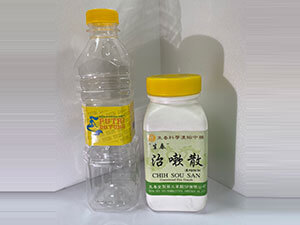

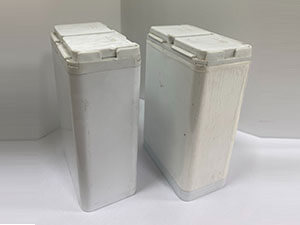

Application:

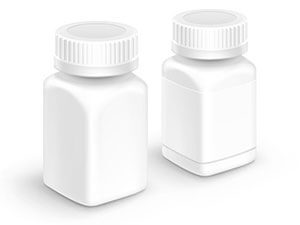

Panel Labeling Machine is suitable for square bottles.
Specification for Product:
Model
CY- 3100
Machine Size(L*W*H)
2400x1200x1500
Label Length
20-300mm
Label Height
20-135mm
Label Reel(I.D.)/(O.D.)
76 mm / 360 mm
Product Height
40-300mm
Product Width
30-250mm
Labeling Speed
1-50bpm
Control System
CPU/PLC
Power Supply
110V / 220V, 50/60HZ, Single Phase
Option:

* Hot Foil Printer-Pneumatic Drive

* Transparent Sensor

* Missing Label Detection

* Missing Print Detection

* Rejection Mechanism
