Application

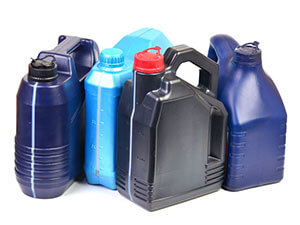

This machine is suitable for all kinds of plastic bottles to detect the leak such as, soft drink, detergents, lubricants, motor oil and chemical industries to ensure bottle quality before liquid filling.
Feature
- Machine suitable for standalone or connect with other machines in one production line.
- The machine all made up of stainless steel and aluminum alloy.
- It can be adjusted depending on the Size of bottle.
- CPU control system.
- With A/C Motor to adjust the leak testing speed.
- The testing heads could be adding to meet the requested output.
Product Specification
| Model | CY-500 |
|---|---|
| Machine Size (L×Ｗ×Ｈ) | 1500x500x1500 mm |
| Container Volume | 0.1-2 L |
| Bottle Height | 50-300 mm |
| Bottle Width | 50-250 mm |
| Bottle Mouth (Diameter) | 21-80 mm |
| Testing Speed | 1-60 bpm |
| Control System | CPU/PLC |
| Voltage | 110V / 220V, 50/60HZ, single phase |
*Specifications are subject to change without prior notice.
Video

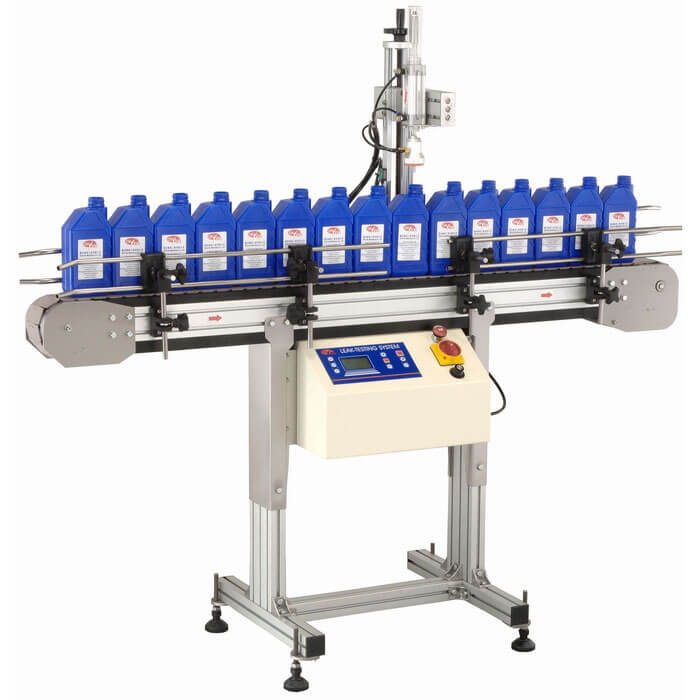

CY-500 Automatic Leak Tester
CY-500 Automatic Leak Tester
